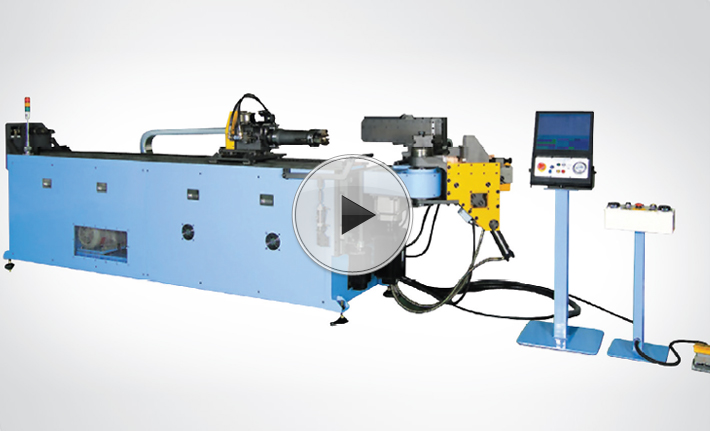

    CNC Pipe Bending Machine


           CNC Pipe Bending Machine
    MODEL NPB15 NPB30 NPB50 NPB70 NPB90
    Bending Capacity OD×T
    (SUS Pipe)    		 Ø15×1.5T
    (Ø12×1.5T)    		 Ø30×2.0T
    (Ø25×2.0T)    		 Ø50×2.5T
    (Ø45×2.5T)    		 Ø70×2.5T
    (Ø63×2.3T)    		 Ø90×3.0T
    (Ø76.2×2.5T)
    Max Rad 70R 150R 220R 250R 250R
    Angle 190˚ 190˚ 190˚ 190˚ 190˚
    Maximum Pipe Length(mm) 1,500 2,000 2,500 2,500 3,000
    Servo Axis 5 Axis 6 Axis 10 Axis 10 Axis 10 Axis
    Speed Feeding(mm/Sec) 1,200 1,200 1,000 800 800
    Rotating(˚/Sec) 360 360 270 270 240
    Bending(˚/Sec) 200 180 110 90 80
    Tolerance Feeding(±/mm) 0.1 0.1 0.1 0.1 0.1
    Rotating(±/mm) 0.1 0.1 0.1 0.1 0.1
    Bending(±/mm) 0.1 0.1 0.1 0.1 0.1
    Power Hydraulic Motor(kW) 1.5 3.75
    Tank(L) 30 60
    Servo Motor(kW) 5.0 8.3 18 37.5 50
    Total Power 3Ø 220V, 9.5kW 3Ø 220V, 15kW 3Ø 220V, 23kW 3Ø 220V, 45kW 3Ø 220V, 62kW
    Dimension Length(mm) 3,150 3,850 4,700 6,200 7,500
    Width(mm) 680 720 820 1,650 2,500
    Height(mm) 1,350 1,350 1,400 1,650 1,800
    Weight(mm) 1,250 1,500 2,100 4,200 9,200
