Jacket Forming Line
M&E Line Up

  • Lock Seaming
    Machine
  • Roll & Spot
    Welding Machine
  • Double
    Flanging Machine
  • Baffle Inserting & Multi
    Spot Welding Machine
  • Double Seaming
    Machine
    •

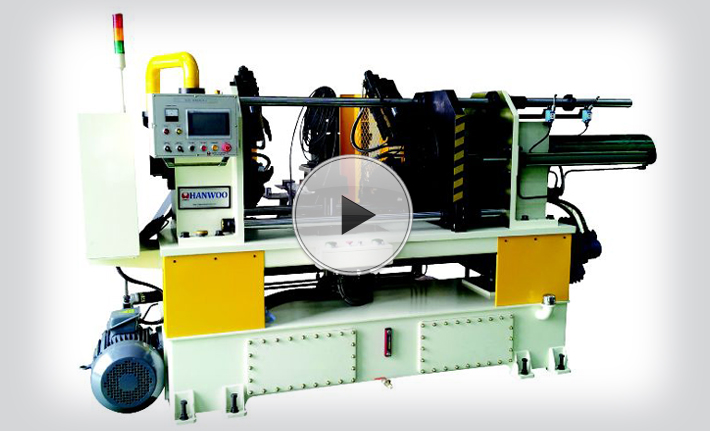

    Double Seaming Machine HWDS-100

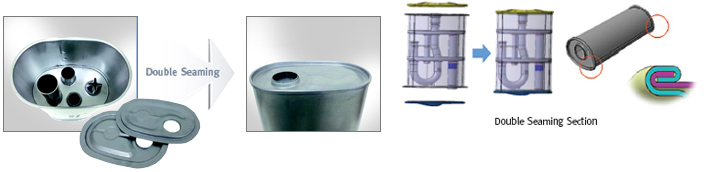

    Double Seaming M/C is to assemble both side caps into muffler body shell with a seaming method without welding method.

    DESCRIPTION SPECIFICATION
    Size 2700mm×2000mm×2300mm
    Voltage & Current 380V, 50Hz
    Control Type PLC Control Type
    Cooling Type Water Cooling Type
    Pressure Oil (70~140kgf/cm2)
    Hydraulic Pump Motor 15hp, 11kw
    Tact Time 30~40sec

           Function & Feature
